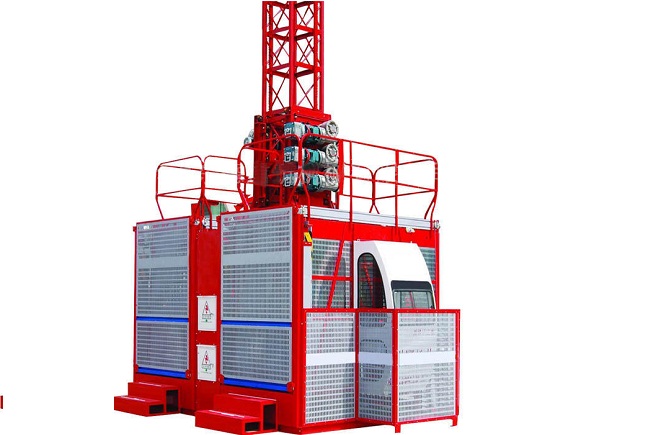

SC Series Construction Hoist
- Description:
-
1. Energy, starting current is less than the rated current.
2. Speed adjustable up to enhance the speed of 63m/min.
3. Frequency control system.
4. Kai brake smooth, low mechanical wear and tear.
5. Anti-dropping device,drive motor, reducer double safety insurance, fastening frame, more secure and reliable. - Contact Now
-
Phone: +86-17317571902
E-mail: ailsa@buildinglift.com
- Overview
- Specification
- Main Performance
- video
-
China SC Series construction hoist Smoothly starting and stopping ,less power,easy control on speed ,better service
Features:
1. Energy, starting current is less than the rated current.
2. Speed adjustable up to enhance the speed of 63m/min.
3. Frequency control system.
4. Kai brake smooth, low mechanical wear and tear.
5. Anti-dropping device,drive motor, reducer double safety insurance, fastening frame, more secure and reliable.Main technical details:
specifications SC200/200 Cage load capacity 2000Kg*2 Independent height 50m Lifting speed 34m/min Max. lifting heigh 250m Number of passengers 16 person*2 Cage inner dimensions 3*1.3*2.2 m ( It can be arranged according to your requirement) section dimensions 0.65*0.65*1.508m Power of Motors (11Kw* 3)*2/(15Kw*3)*2
-
SC Series construction hoist of common models:
Characteristic Model Rated Loading Lifting Speed Motor Power SC200/200 2×2000kg 33m/min 2×(3×11kw) Double cabin SC150/150 2×1500kg 33m/min 2×(2×15kw) SC100/100 2×1000kg 33m/min 2×(2×11kw) SC200 2000kg 33m/min 3×11kw Single cabin SC150 1500kg 33m/min 2×15kw SC100 1000kg 33m/min 2×11kw construction hoist with Interver:
Characteristics Model Rated Loading Lifting Speed Motor Power SC200/200D 2×2000kg 0-33m/min 2×(3×11kw) Low-speed SC100/100D 2×1000kg 0-33m/min 2×(2×11kw) Double Cabin SC200/200Z 2×2000kg 0-55m/min 2×(2×11kw) Mid-speed SC100/100Z 2×1000kg 0-55m/min 2×(2×11kw) SC200D 2000kg 0-33m/min 3×11kw Single Low-speed SC100D 1000kg 0-33m/min 2×11kw Cabin SC200Z 2000kg 0-55m/min 2×11kw Mid-speed SC100Z 1000kg 0-55m/min 2×11kw
-
1. With high quality products, competitive price and after-sales services, our products such as SC200/200 series construction elevators have been sold to many provinces in China, the Middle East, South Asia, Africa many other countries and regions.
2." Rapid response, immediate action, quality first, reputation first", and customer demand will be the power of our development, to provise users with satisfactory products and quality survice.
3,We sincerely hope to establish long-term friendly cooperation with friends comes at home and abroad.
