U-model Structure Mast Section
- Description:
-
1. Steel plates are bented of U-shape to strengthen the mast section.
2. Mast section with galvanized coat or heat spray coat can be chosen.
3. High quality steel plate Q345B bended by special machine: Thickness 4.5mm - Contact Now
-
Phone: +86-17317571902
E-mail: ailsa@buildinglift.com
- Overview
- Specification
- Main Performance
- video
-

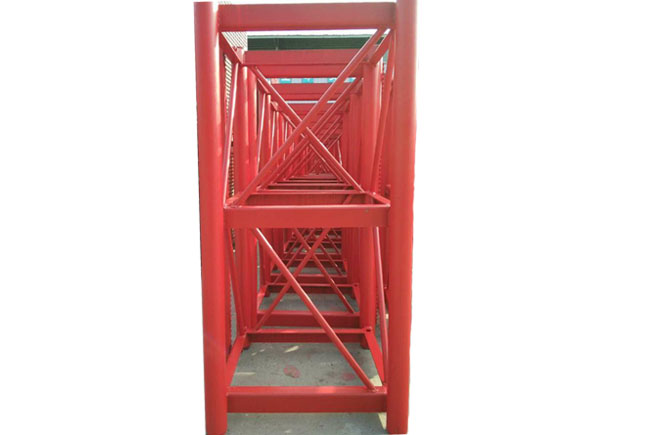

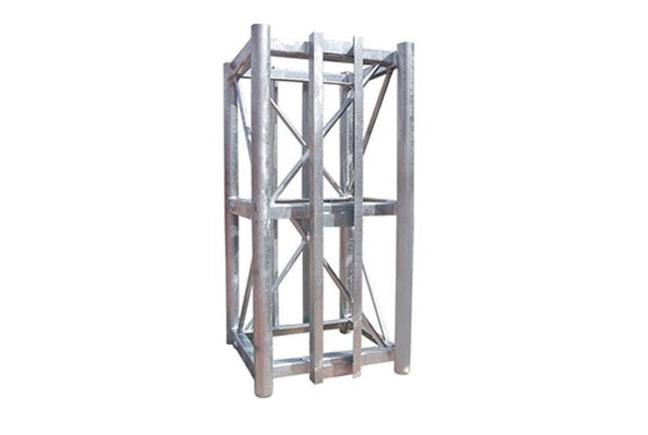

The Mast section (color is variable) is made of seamless tube or HF welded tube.
1. Steel plates are bented of U-shape to strengthen the mast section.
2. Mast section with galvanized coat or heat spray coat can be chosen.
3. High quality steel plate Q345B bended by special machine: Thickness 4.5mm
4. Welded steel tube Q345B and seamless steel tube 20# are also available: Ø76*4.5mm or Ø89*4.5mm (Thickness of 6mm or 8mm is also available).
5.650*650*1508mm is the most common size fits for clients. Other model of mast section can choose: 450*450*1508mm, 650*900*1508mm,800*800*1508mm.type A B dimension 650X650mm 750X750mm diameter 76mm 89mm
-
Welded by seamless steel tube, steel angle, steel tube, equipped with the disconnectable rack,on both sides.There is stopper welded on the lower end of the main rod, there is the spring pin on
the lower end of the rack to ensure the accurate position of the installed master section.
The cross section of the master section is 650×650mm, the guide rail connected with the building through the wall tie.
The mast section can be customized according to customers' requirements (drawing, specifications and so on).
-
Automatic Vehicle Machine is our patented technology, including the grating detection (if the length or straightness tolerances are not met, the workpiece will automatically drain to go below and no longer processing) with automatic feed mechanism, mast section main tube machining precision greatly improved in order to ensure mast section reliability, while significantly improving the efficiency of production of 750 units / day.
