Modern Industrial Aerial Work Lift Aluminium Electric Suspended Platform Steel Hanging Basket Outdoor Construction Work
| Model | Capacity | Platform length (L × W × H ) | Rated power | Lifting speed | Steel rope dia | Power | Counter Weight |
| ZLP 250 | 250(kg) | (1000×1)× 690×1180 mm | 1.5(kw) | 9.6 m/min | 8.3 mm | 380V(415v/220v) | 350KG |
| ZLP 500 | 500(kg) | (2500×2)× 690×1180 mm | 2×1.5(kw) | 9.6 m/min | 8.3 mm | 380V(415v/220v) | 800KG |

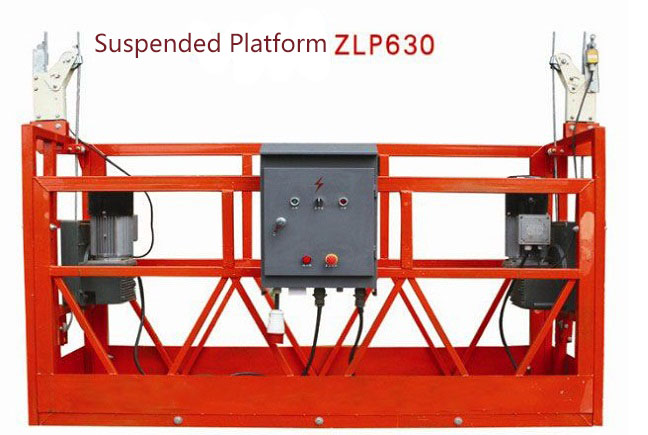

| ZLP 630 | 630(kg) | (2000×3)× 690×1180 mm | 2×1.5(kw) | 9.6 m/min | 8.3 mm | 380V(415v/220v) | 900KG |
| ZLP 800 | 800(kg) | (2500×3)× 690×1180 mm | 2×1.8(kw) | 8.3 m/min | 8.6 mm | 380V(415v/220v) | 1000KG |
| ZLP 800s | 800(kg) | (2500×3)× 690×1180 mm | 2×1.8(kw) | 8.3 m/min | 8.6 mm | 380V(415v/220v) | 1000KG |
| ZLP 1000 | 1000(kg) | (2500×3)× 690×1180 mm | 2×2.2(kw) | 8.3 m/min | 9.1 mm | 380V(415v/220v) | 1200KG |

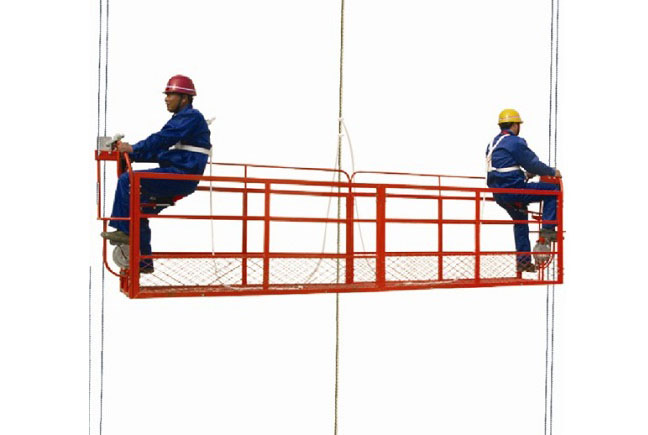

| ZLSP400（single/Double Pedal Suspended Platform） | 400(kg) | (2000×2)× 600×1100 mm | / | / | 7.5mm | 380V(415v/220v) | 700KG |
| 135°Two Corner Suspended Platform | 600(kg) | Long:197+235+197cm width:77cm Height:254cm Corner Angle:135°(Customised) | 3×1.5(kw) | 9.6 m/min | 8.3 mm | 380V(415v/220v) | 900KG |
| Circular Suspended Platform | 600-1000(kg) | OD:394cm ID:256cm Height:176cm | 4×1.5(kw) | 9.6 m/min | 8.3 mm | 380V(415v/220v) | 900-1200KG |
"SUCCESS" brand ZLP series Temporary Suspended Platforms are kinds of aerial working platform which can take the place of traditional scaffolding. For their advantage of reducing the working intensity, i mproving the efficiency, and its
capacity to be reused,Temporary Suspended Platforms have been already widely used for the facade painting.curtain wall installation,facade maintenance, etc on the high rising buildings. Furthermore, it will save nearly 70% of the construction cost comparing with the traditional scaffolding.
1.Fast installation, simple operation and advanced quality
2.Multi-protection measures: Anti-titling protection; Emergency Stop;Rope-breaking Protection;Over-speed Protection;Travel Limit protection; Manual Descending, etc.
3.Hot galvanized, cold-galvanized and bake painted provided.
4. Unique Design and manufacturing techniques ensure the platform’s longer service life and reliable performance.
5.Especially good at desig门ing and maufacturing all kinds of non—standard Suspended Platforms as Very Long Platform
for bridge.Hanging Platform for ships,Circle platforms for chimneys,Suspended Platform for elevator installation,etc.
To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:
1. Service brake incorporated in the LTD hoist.
2. Two fall arrest devices acting on the safety wire ropes
3. Two upper limit switches.
4. No power descent in case of power failure.
5. Emergency stop.
6. Phase controller. (Option)
7. Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)

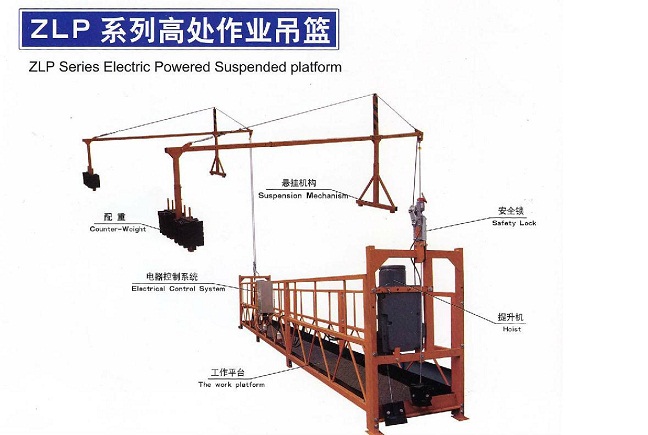

Suspension Mechanism and Platform:
Surface treatment with hot galvanized craft,the steel is not easy to rust.The service life can be as long as 15 years,more durable than spraying process
Hoist:
With famous brand of motor, large braking torque
Inside gear technique (machining-heat treatment-fine machining-surface nitridation-fine grinding), high precision, long services life.
Lubrication oil is 220# industry gear oil.
Safety lock:
The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear resistant, long services life,safe and reliable.
Electric control box:
The electric components uses famous brand,CHNT,SCHNEIDER,quality is guaranteed.
Perfect circuit design,including leakage protection, current overload protection, emergency braking. Operate simply, safe and reliable.
Wire rope:
Our supplier is Jiangsu Fasten Steel cord Co.,Ltd."FASTEN"is famous brand in china
Cable:
Using National Standard cable3*1.8+2*1.5 and 3*2.5+2*1.5. The using life is longer than Non National Standard.
