Anti Tilt Safety Lock for Suspended Platform
"SUCCESS" Anti tilting LSB30 LST30 Safety Lock
Main Usage:
a. Cleaning work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
b. Painting and decoration work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
c. Repair and maintenance work platform of building walls, glasses, external walls, large chimney, large tanks, dams etc.
d. Widely applied to various works of building walls, glasses, external walls, large chimney, large tanks, dams etc.
Advantages:
1)The max lifting height can be up to 300m;
2)We can supply customized platform to meet different requirements from customers;
3)Professional quality, competitive price,fast delivery and considerate service etc;
4)Certification:ISO & CE;
Features:
it is easy to be disassembly and move; the size of platform can be adjusted freely,Safety,high quality components,
24 hours on line.

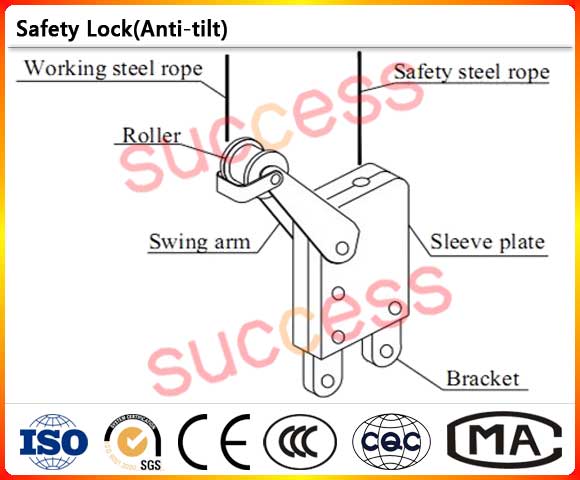

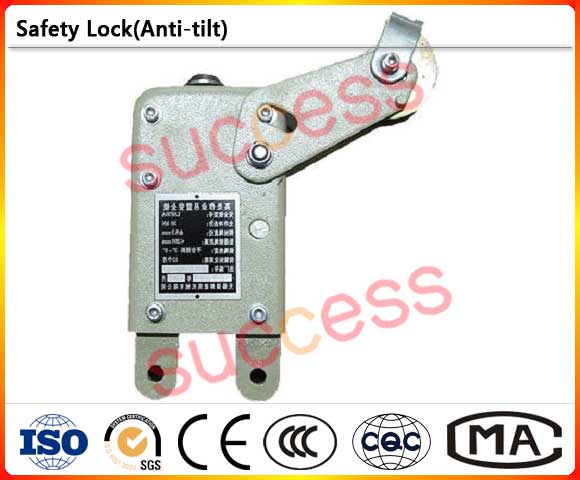

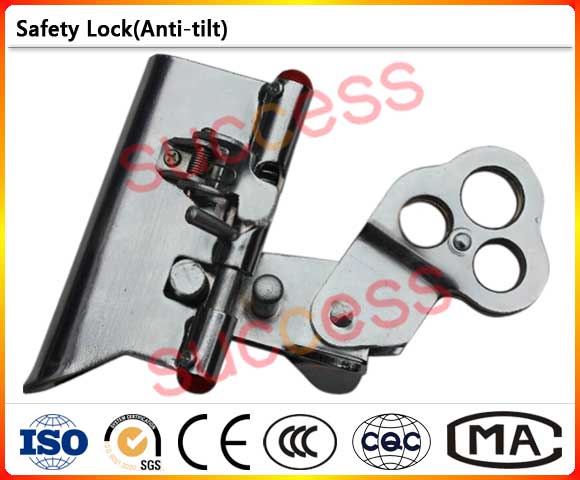

Safety lock is a separate mechanical unit that can automatically lock safety wire rope when the working wire rope is broken or suspended platform tilts to its limits.
The safety lock is used combined with the steel wire rope, safety rope, and hoist, guarantee the security of the platform more safety.
| Model | Rated Load | Cable Locking Angle | Locking Rope Distance | Diameter Of Wire Rope |
| LSG16 | 400KG | 3°-8° | <200mm | Φ7.5mm |
| LSG20 | 630KG | 3°-8° | <200mm | Φ8.3mm |
| LSG30 | 800KG | 3°-8° | <200mm | Φ8.6/9.1mm |
| LSF310 | 1000KG | 3°-8° | <100mm | Φ10.2mm |
Anti Tilt Safety Lock for Suspended Platform Selection Notes
Anti Tilt Safety Lock for Suspended Platform is listed for buyers who need reliable lifting or access equipment for construction, facade work, maintenance or replacement service. Before confirming an order, match the product with the actual machine model, site height, rated load, power supply and installation conditions.
For related options, browse our suspended platform accessories or contact the technical team with drawings, photos, nameplate information and working conditions.
