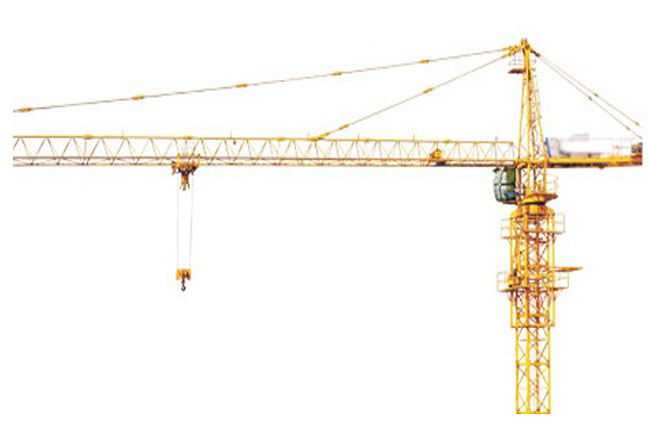

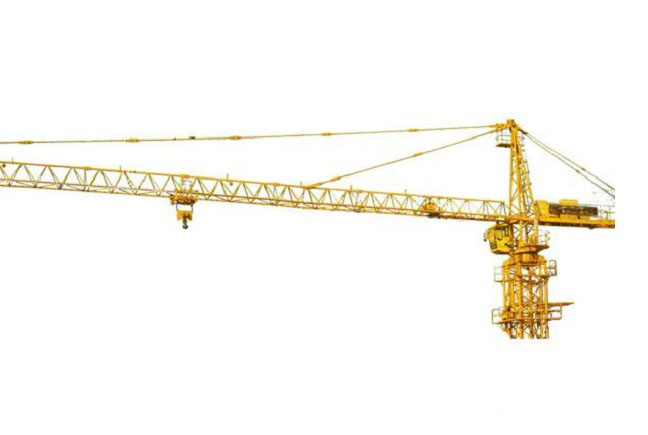

CE Certified Construction Machinery Tower Crane (TC5013) with Max Load 6 Tons
Tower Crane Model:QTZ63(5013)
Free Standing Height/Max. Height:40m/150m
Jib Length :3---50m
Mast Section/Material: Square Tube∠160×160×16/Q345B
Size of Mast Section, L×W×H: 1680×1680×2500
Collar Ties Situation: Distance between first collar tie and the ground 35000mm, Other Distance 25000mm,Suspension Height no more than 25m
Balanced Weight /Jib Length:12.2t/50m
Total Power: 40.2Kw
Loading Chart:
2 FallsJib Length (m) 3-26.6 28 29 31 32 33 34 35 36 Load (t) 3 2.82 2.7 2.49 2.39 2.31 2.23 2.14 2.07 Jib Length (m) 37 38 39 40 41 42 43 44 45 Load (t) 1.99 1.93 1.87 1.81 1.75 1.69 1.64 1.59 1.55 Jib Length (m) 46 47 48 49 50 Load (t) 1.49 1.45 1.41 1.37 1.335 4 Falls
Jib Length (m) 3-14.7 16 17 19 21 23 25 26 27 Load (t) 6 5.46 5.1 4.44 4.01 3.6 3.26 3.11 3.97 Jib Length (m) 29 30 31 32 33 34 35 36 37 Load (t) 2.72 2.61 2.5 2.4 2.31 2.22 2.14 2.06 1.99 Jib Length (m) 38 39 40 41 42 43 44 45 46 Load (t) 1.92 1.86 1.79 1.73 1.67 1.62 1.57 1.52 1.47 Jib Length (m) 47 48 49 50 Load (t) 1.43 1.38 1.34 1.31
-

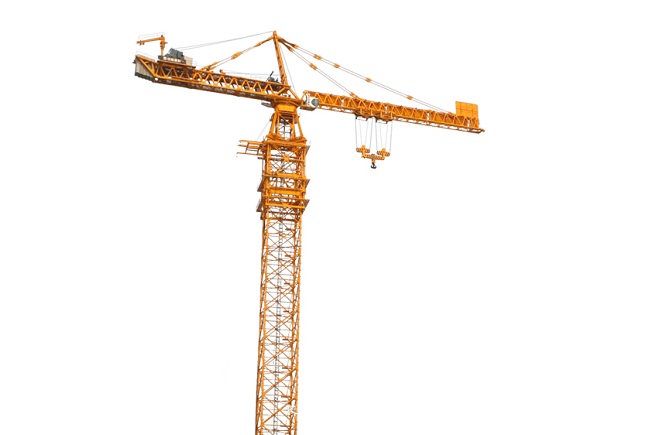

TOWER CRANE QTZ63(TC5013)
This machine is the crane with vertical arm support, trolley travel and up-rotary hydraulic jack-up system. Its maximum effective amplitude is 50m and it is the only domestic tower Crane type to reach this amplitude. Its maximum lifting moment is 630kNm. When Used alone, its lifting height is 40 m and attaching lifting height 150 m (α =2).
Feature of tower crane
Item parameters
1. Max. Load6t
2. Jib length50m
3. Tip load1.3t
4. Free standing height40 m
5. Max. Height150m
6. Size of mast section1.6× 1.6× 2.5
7. Material of mast section125× 125× 10 buckled square steel stiffened plate
-
The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, Slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley,Traveling range. Its PLC (Programmable Logic Controller) unit can diagnose the cause of breakdowns.Its Safety Monitoring System (also known as Black Box) displays the data of working radiuses, heights, Moments and weights.According to the size of the machine you need, we have adopted the FCL and LCL packing, If you have special circumstances according to your requirements packaging Responsible for operation, installation maintenance unit owes a duty of supervision and inspection of ,The daily maintenance content.The main mode of transportation: Road, rail and sea. If there are special circumstances we can decide.
